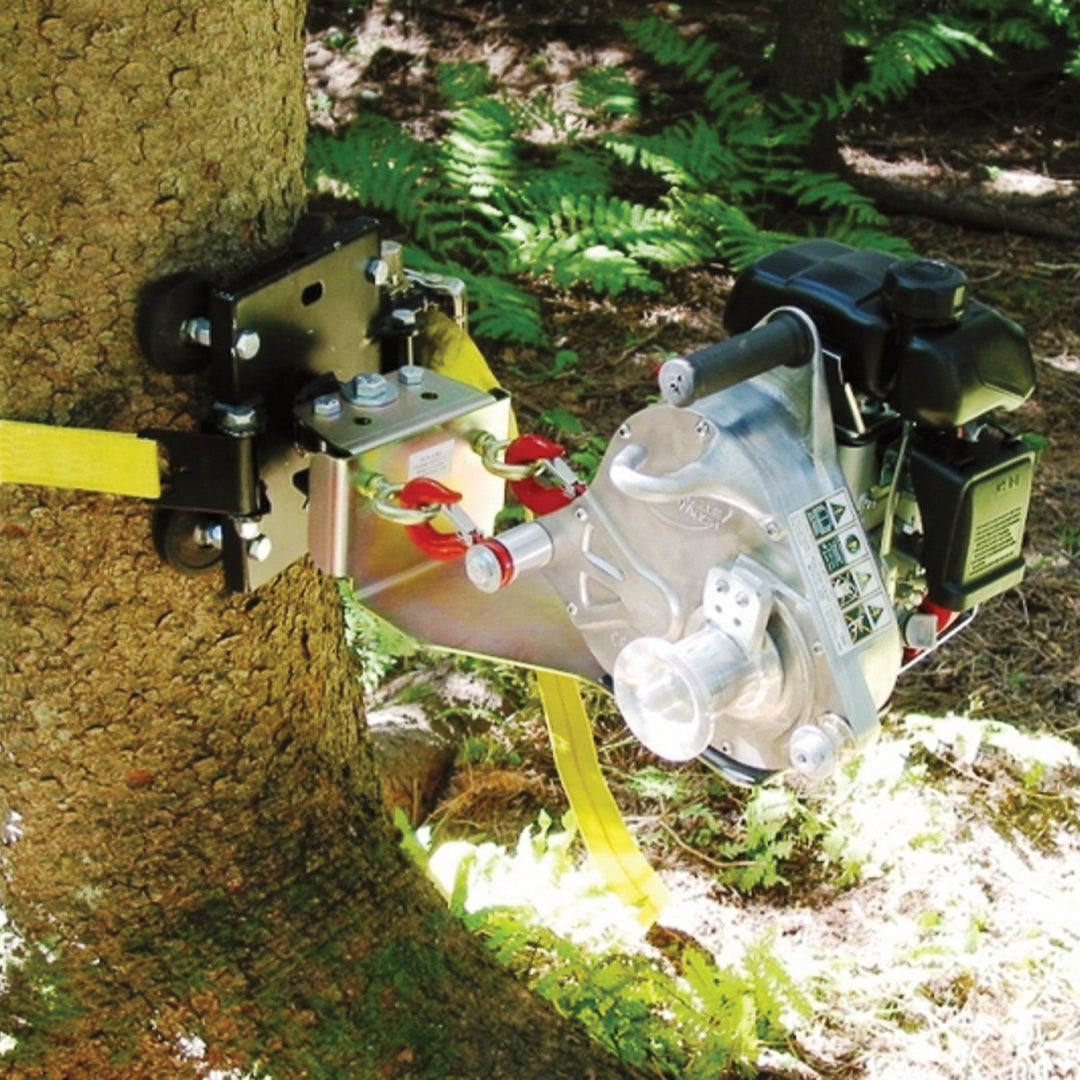

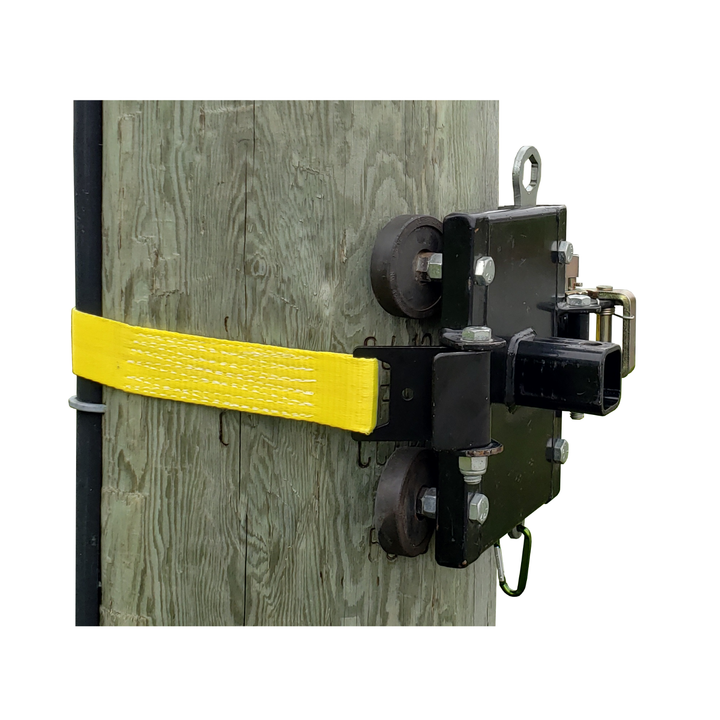

The anchoring system provided offers a secure method for mounting the winch onto trees or poles, enabling more comfortable working heights and facilitating extended use from a fixed position. It serves as the foundation for various accessory combinations (refer to figures above) and features four rubber pads that prevent slipping and protect tree bark.

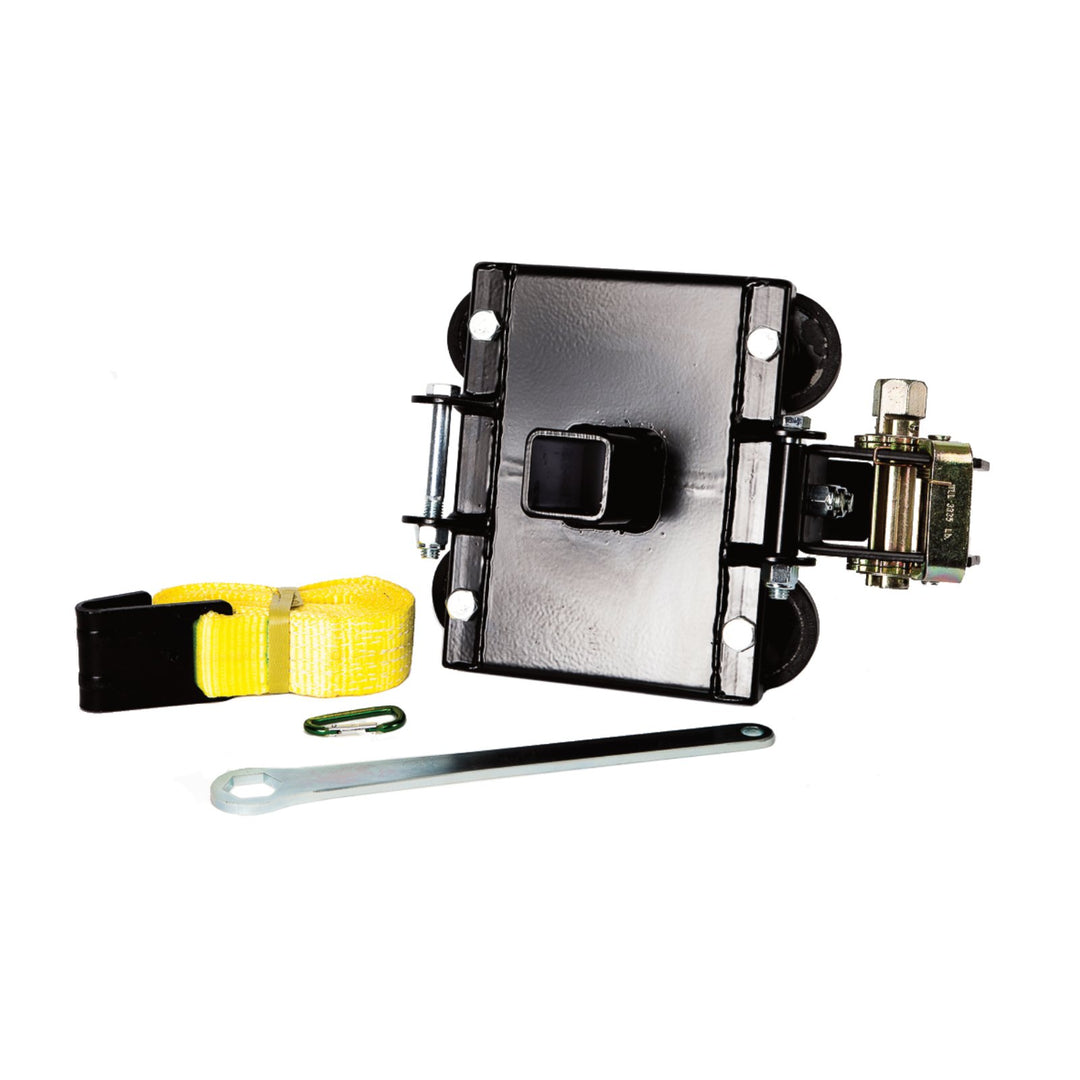

The package includes a 10-foot strap and a ratchet system with a key for secure anchoring.
Designed to fit trees or poles with diameters ranging from 12 inches to 36 inches.
Note: This system is not intended for standalone use and must be combined with other accessories. The PCA-1263 offers different combinations of accessories depending on the application and environment (see figures above).

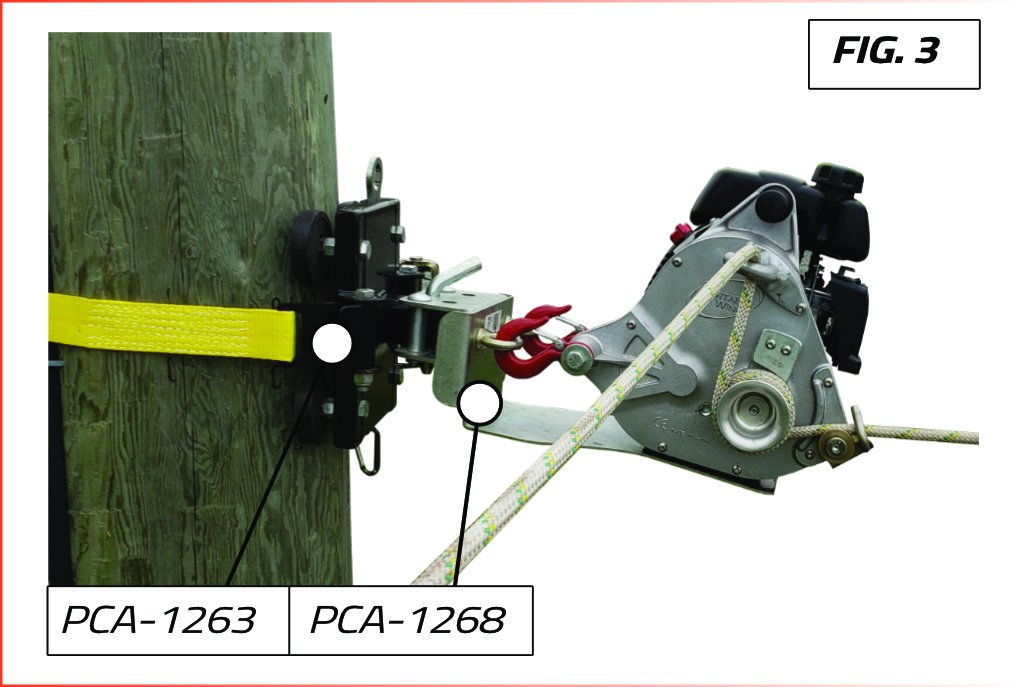

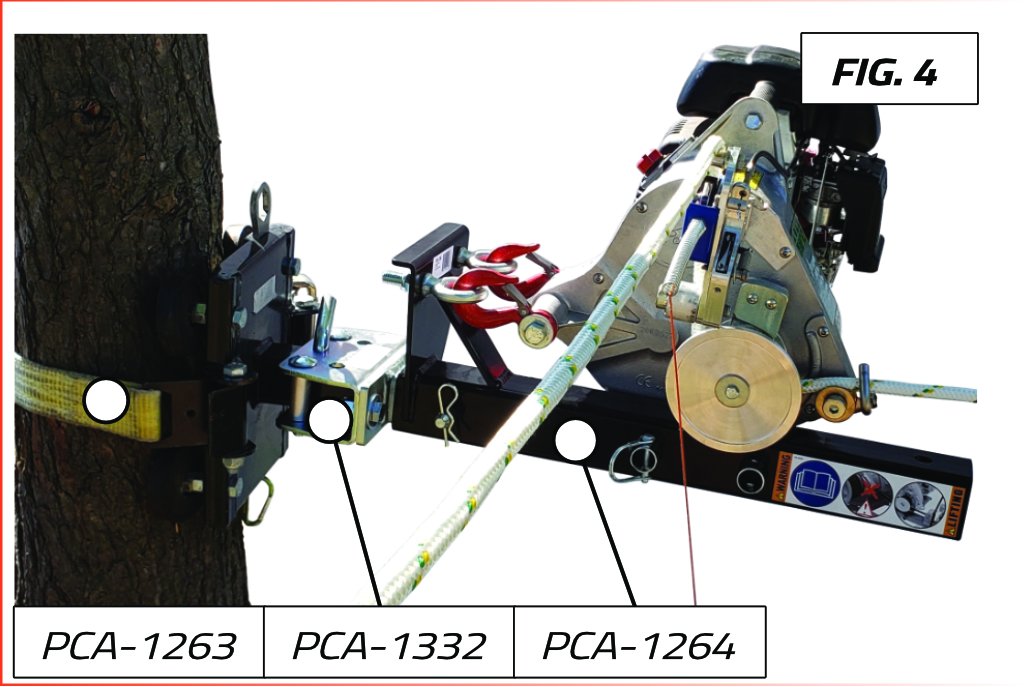

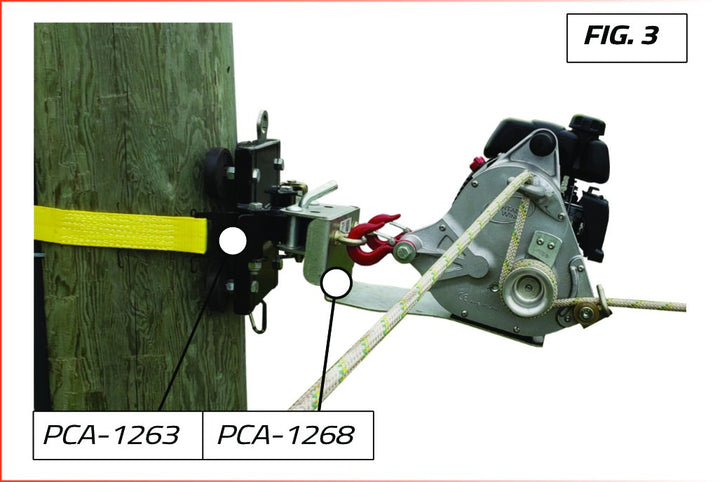

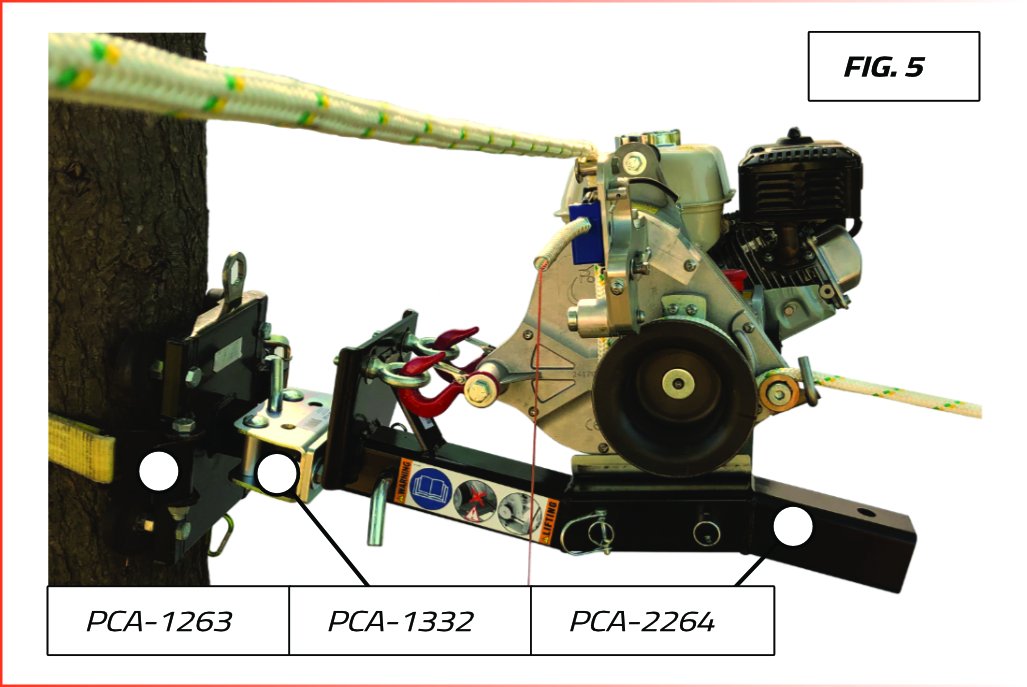

For example, when paired with specific accessories, it enables horizontal pulling. In this configuration, the winch faces the load directly, and the rope is aligned in a straight line towards the winch. (Refer to Fig. 3, 4, 5)

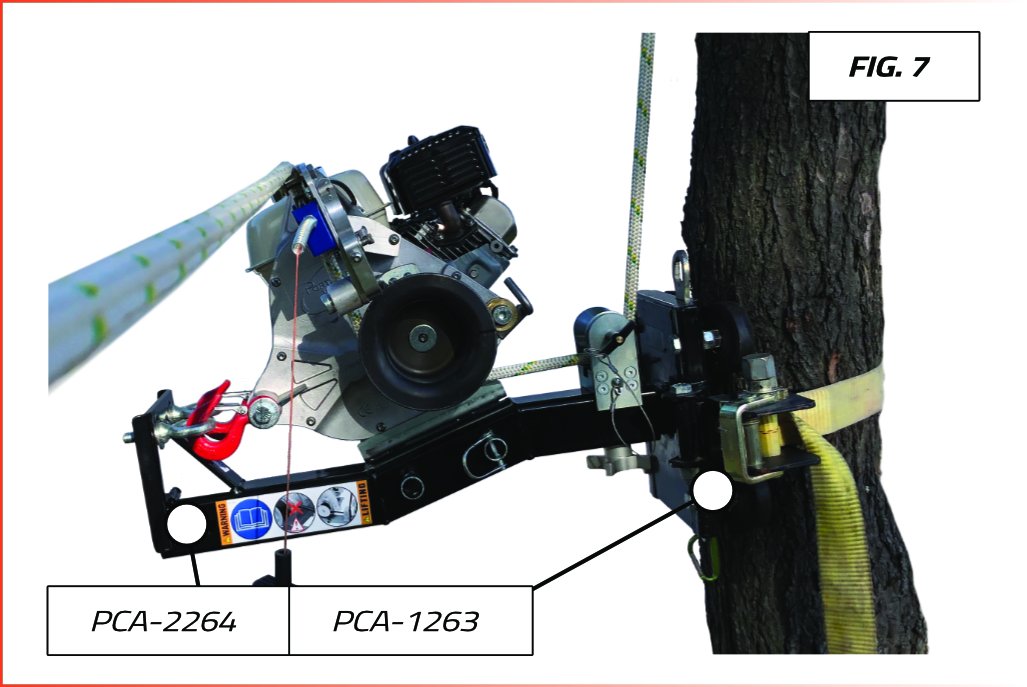

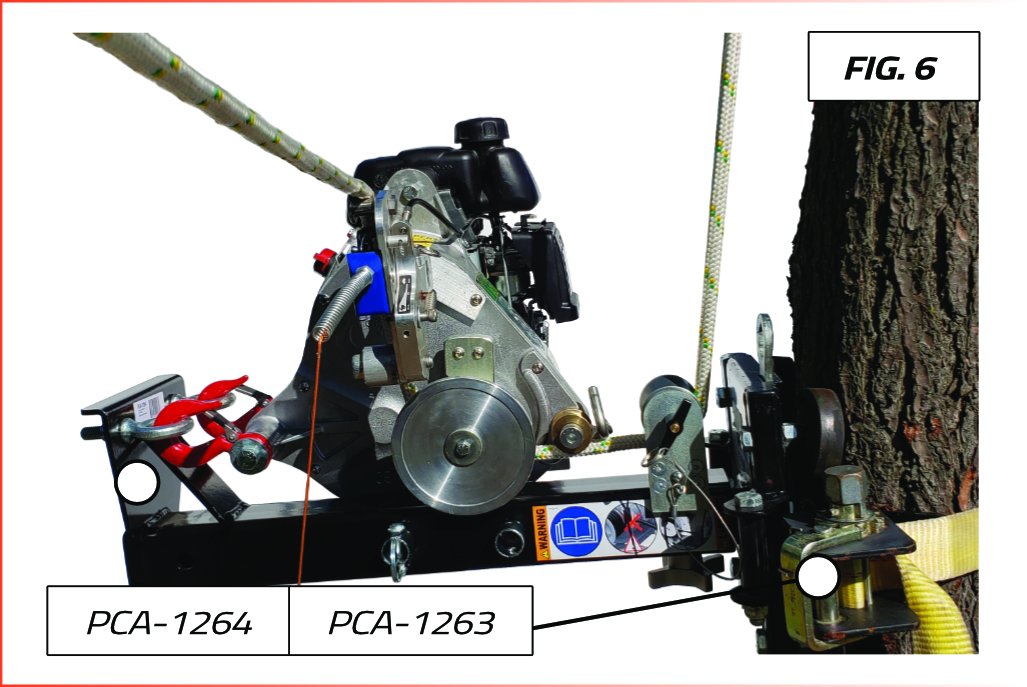

On the other hand, when combined with different accessories, it is suitable for vertical pulling. In these cases, the winch faces the anchor point, and the rope comes from the top towards the winch. (Refer to Fig. 6, 7)
Compatible with the following winch models: PCW3000-Li, PCW3000, PCW4000, PCW5000, and PCW5000-HS.
For more information, please refer to the “Additional Information” tab, where you can find an informative video and the manual.

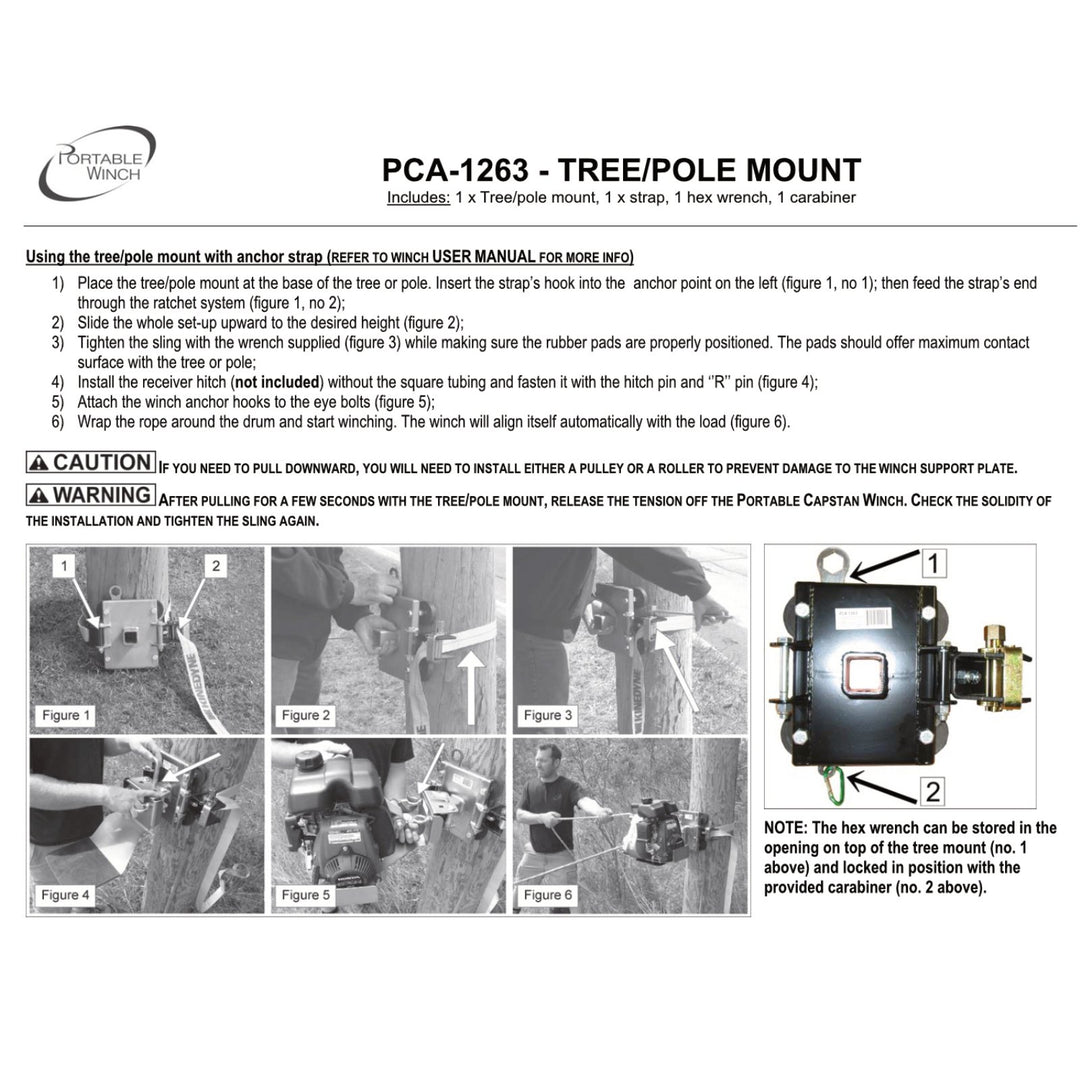

Find the manual here.
Material: Steel with high resistance paint
Weight: 16 lb
Dimensions: 15'' x 10'' x 9''
|
