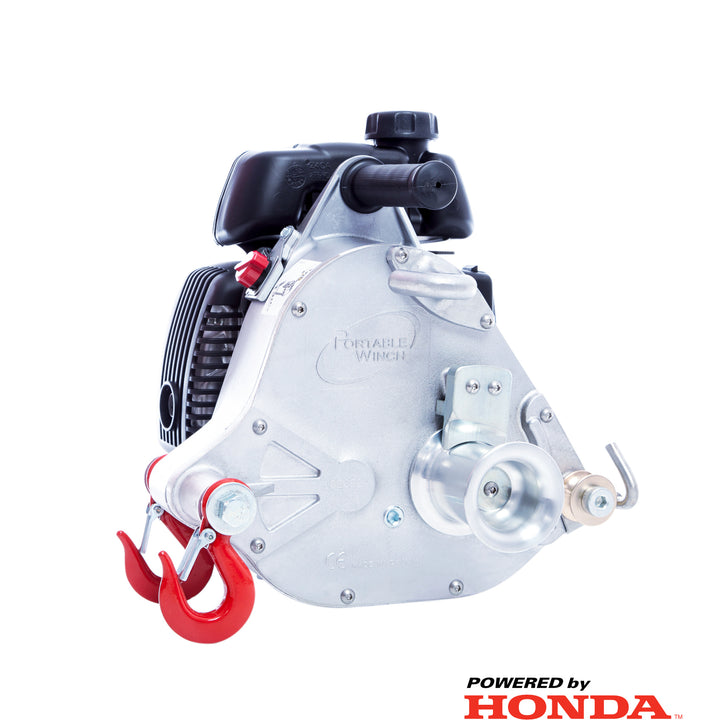

GXH50 Gas-Powered Portable Winch

Name: GXH50 Gas-Powered Portable Winch
Brand: Portable Winch US
SKU: PCW5000-A
Price: 2169.95 USD
Availability: InStock

$2,169.95 USD

Shipping calculated at checkout.

Features the GXH50 engine by Honda, a commercial grade engine that will never let you down. This winch is inexhaustible and will be your ally to do whatever job you have to do.

Product

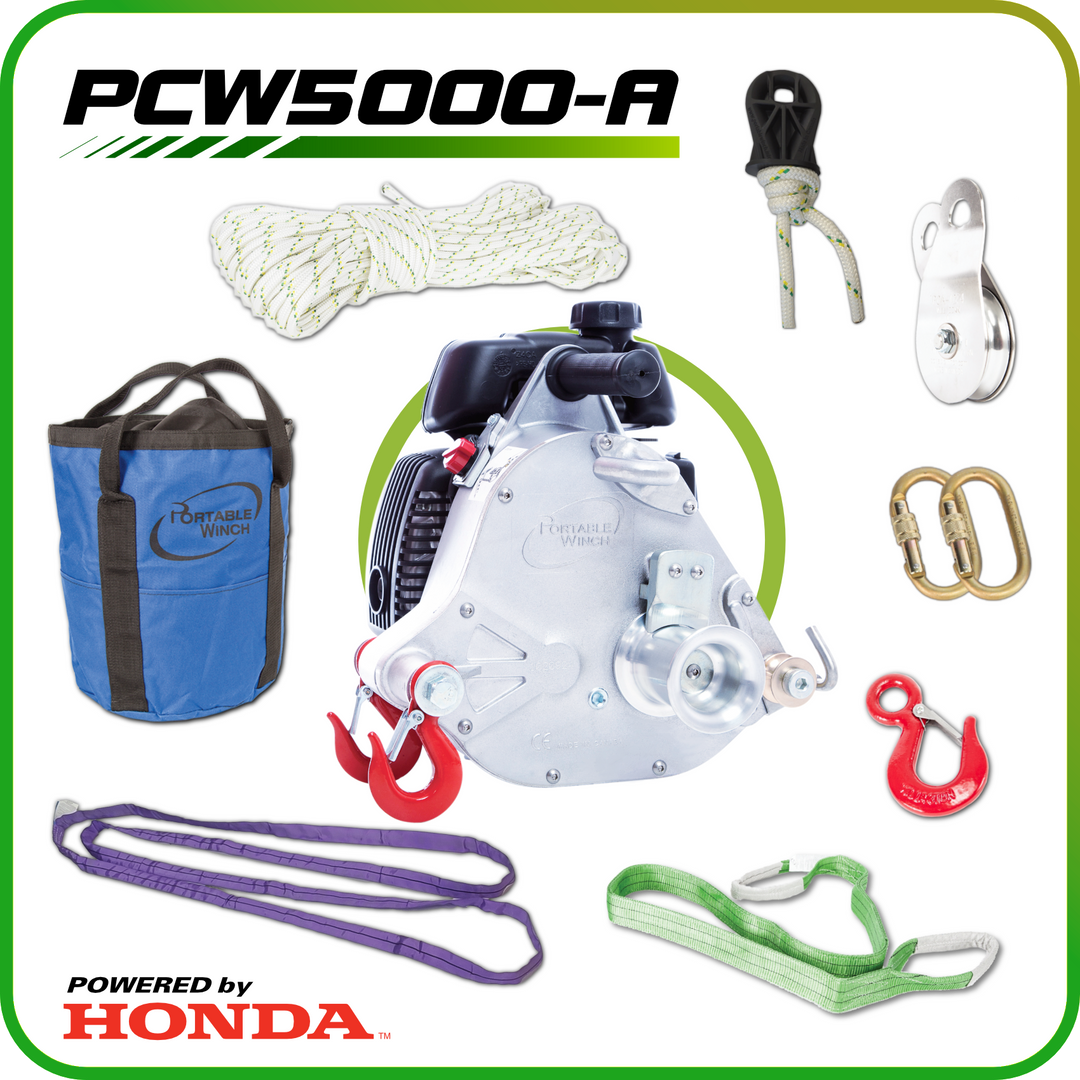

PCW5000-A: With 9 accessories

PCW5000: With anchor sling only

FIND YOUR DEALER

[{"id":44313535742190,"title":"PCW5000-A: With 9 accessories","option1":"PCW5000-A: With 9 accessories","option2":null,"option3":null,"sku":"PCW5000-A","requires_shipping":true,"taxable":false,"featured_image":{"id":39354096484590,"product_id":8003173875950,"position":2,"created_at":"2023-07-25T15:47:29-04:00","updated_at":"2023-09-06T11:29:39-04:00","alt":null,"width":1700,"height":1700,"src":"\/\/www.portablewinch.com\/cdn\/shop\/files\/PCW5000-A.png?v=1694014179","variant_ids":[44313535742190]},"available":true,"name":"GXH50 Gas-Powered Portable Winch - PCW5000-A: With 9 accessories","public_title":"PCW5000-A: With 9 accessories","options":["PCW5000-A: With 9 accessories"],"price":216995,"weight":28005,"compare_at_price":null,"inventory_management":"shopify","barcode":"690581024054","featured_media":{"alt":null,"id":32080362832110,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/www.portablewinch.com\/cdn\/shop\/files\/PCW5000-A.png?v=1694014179"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44313535709422,"title":"PCW5000: With anchor sling only","option1":"PCW5000: With anchor sling only","option2":null,"option3":null,"sku":"PCW5000","requires_shipping":true,"taxable":false,"featured_image":{"id":39490907832558,"product_id":8003173875950,"position":3,"created_at":"2023-09-08T11:37:25-04:00","updated_at":"2023-09-08T11:37:40-04:00","alt":null,"width":1701,"height":1701,"src":"\/\/www.portablewinch.com\/cdn\/shop\/products\/PCW5000_only.jpg?v=1694187460","variant_ids":[44313535709422]},"available":true,"name":"GXH50 Gas-Powered Portable Winch - PCW5000: With anchor sling only","public_title":"PCW5000: With anchor sling only","options":["PCW5000: With anchor sling only"],"price":184900,"weight":28005,"compare_at_price":null,"inventory_management":"shopify","barcode":"690581000010","featured_media":{"alt":null,"id":32225315160302,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1701,"width":1701,"src":"\/\/www.portablewinch.com\/cdn\/shop\/products\/PCW5000_only.jpg?v=1694187460"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Warranty: 5 years

Learn more

Description
+ Included with the PCW5000-A
+ Included with the PCW5000
Videos
Downloads

The original.

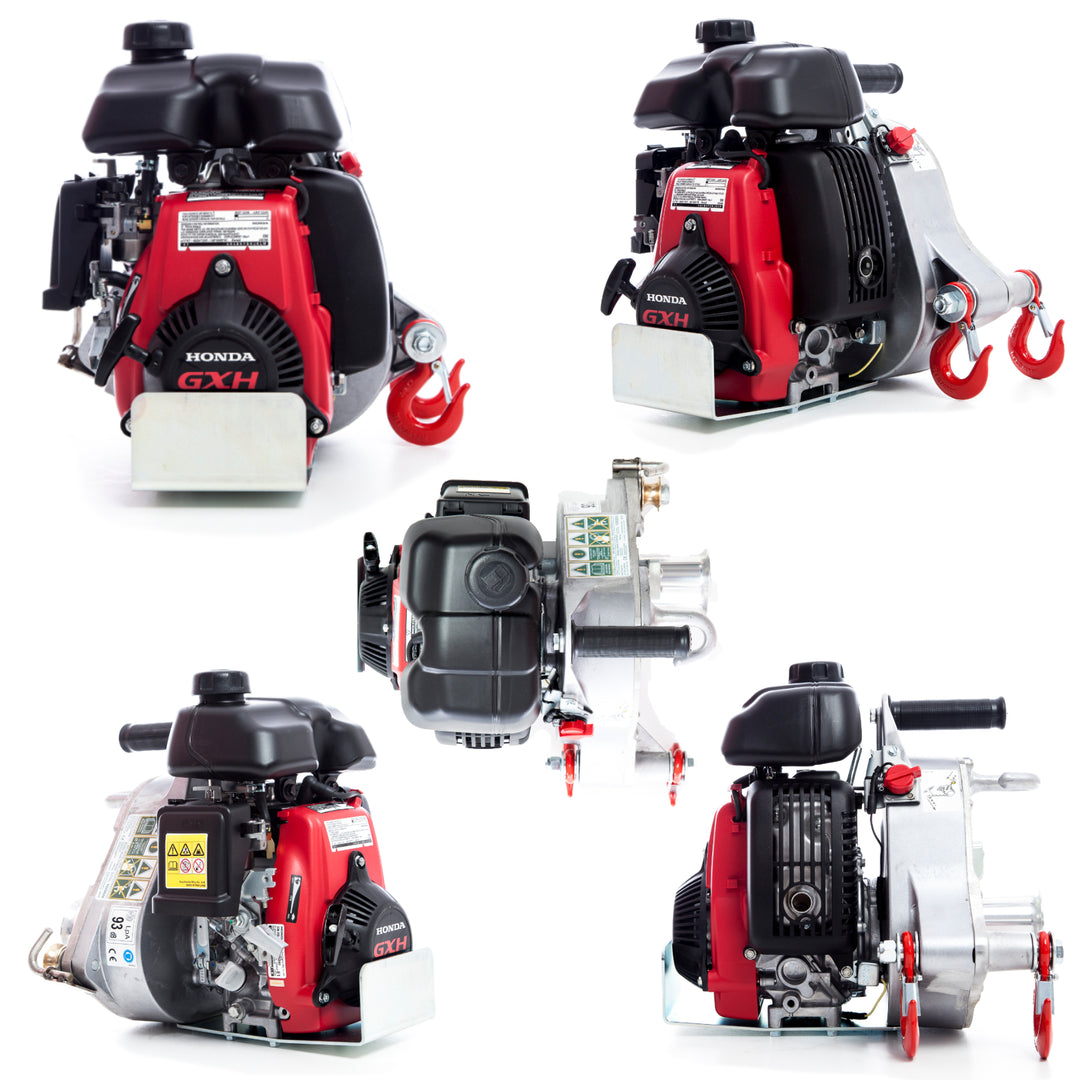

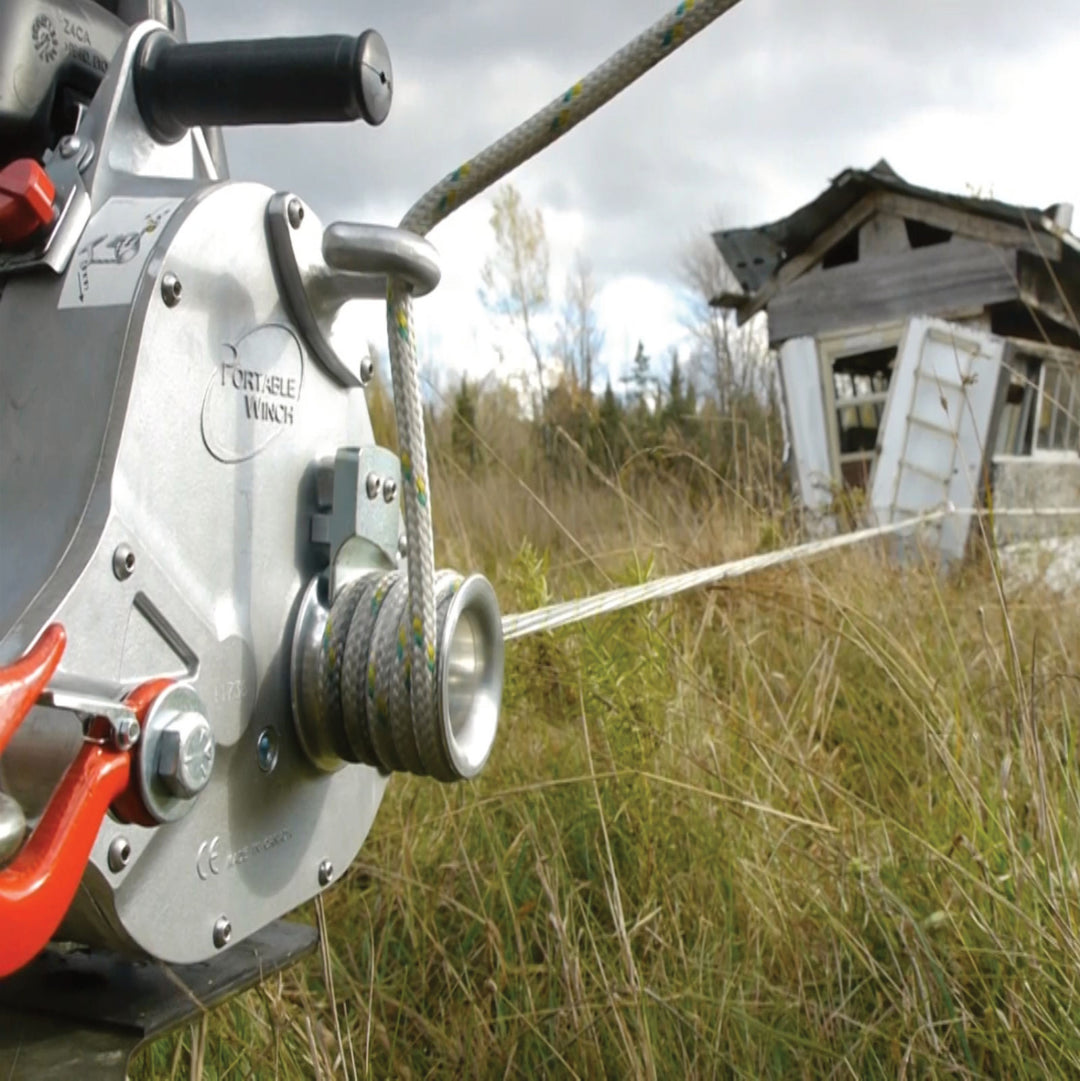

The sturdy design of the PCW5000 still proudly bears the Portable Winch signature quality and durability; an ingenious product, to deliver lasting power, without compromise. Thanks to its industrial-grade GXH50 4-stroke engine (49-state compliant*), this winch delivers all its power for several hundred hours with a constant pulling speed of 12 m (40 ft) per minute. The capstan winch concept allows to pull loads without loss of power, in a simple, effective, and safe way.
For more speed, a larger drum of 85 mm (3 ⅜ in) is available as an option to reach a 50% faster pulling speed of 18 m (60 ft) per minute.

The PCW5000 develops a remarkable pulling force of 1,000 kg (2,200 lb) over an unlimited length of rope. Use a block and tackle to get up to five times (5x) the pulling force. This means, with two double pulleys, you could pull up to 5,000 kg (11,000 lb)!

Unleaded gasoline, 86 octane or higher
Direct drive (no clutch)
Standard drum size: 57 mm (2-1/4 in)
Optional drum size: 85 mm (3-3/8 in)

*California Assembly Bill 1346 - 2024 small gas-powered equipment is banned

Click on the "Downloads" tab to get the detailed product specifications, user manual and more.

PCW5000
Rope bag to store and carry your rope
50 m (164 ft) rope for smooth pulling operations
RopeWizer^TM - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
Single pulley to either deviate the pull angle or double the power of the winch
Steel locking carabiners 2x; one to link the pulley to the sling and one for the end of your rope
Safety Hook with Latch to place at the end of the rope to easily attach to the load
2 m (6 ½ ft) Polyester sling to attach the pulley to a tree for example
2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!

PCW5000

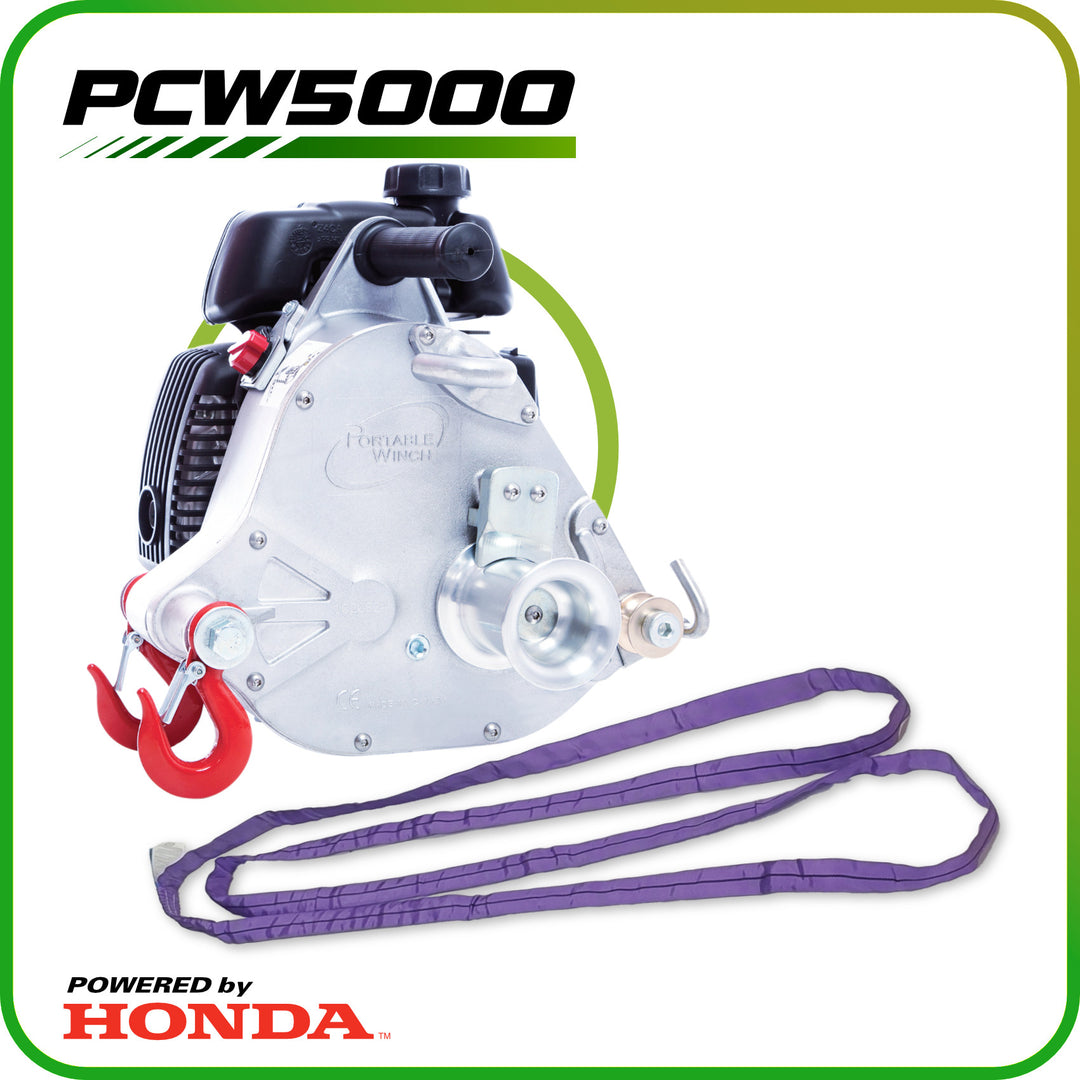

2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!

Technical Data Sheet
Spare Parts
User Guide
Honda engine GXH50 manual
How to Double the power, with block-and-tackle

Complete your selection

PCW5000 Molded Transport Case

PCA-0100

$289.00 USD

1/2'' x 164' Double-Braided Polyester Ropes

1/2'' Double-Braided Polyester Ropes

PCA-1215M

from $149.00 USD

Nonfunctional

Nonfunctional design - not fit for intended purpose. See video.

Don’t stand next to the rope when you’re pulling items

Using the snatch block is awesome doubles it’s pulling strength great investment all around perfect not too quick not too slow In pulling power

PCW5000 and Accessories - Excellent!!!

I used this product and almost all the accessories that comes with it to clean up a land with various challenges, steep hill, mud, water, huge roots, etc. Each time it delivered as expected. It is so powerful. I got big trees out of the water by using pulleys to create the mechanical advantage and get 4x the pulling force. Everything is high quality and really well designed to do the job. Thanks to the Portable Winch Team.
PS: This tool is not a toy. Follow the instructions and guidelines and you will be successful. One day, I anchored the winch to a tree that was not strong enough and it started to fall while I was operating the winch. That was totally unexpected. I was not hurt, but what a surprise!

PCW5000 and Accessories - Excellent!!!

The item was damaged from the first day

The item has been damaged since the first day and the seller does not help you at all and says that I cannot return it, I do not recommend this seller
